Узел ADF Kyocera (в сборе, Kyocera FS-3040/3140, разбор)

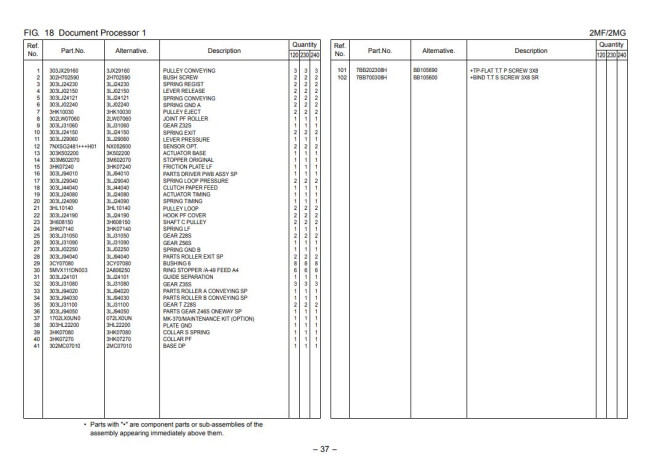

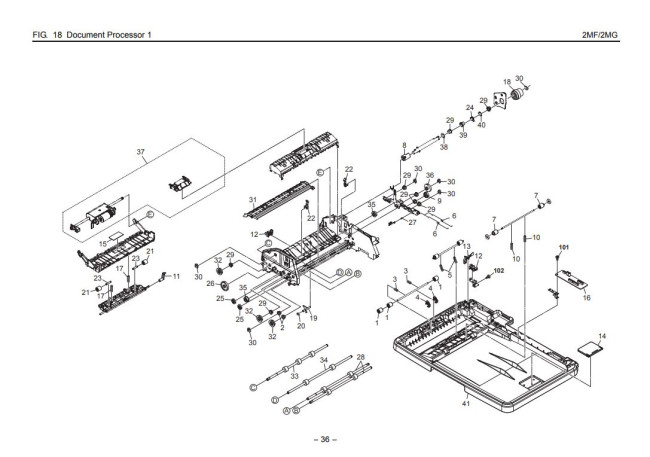

в составе:
303JX29160 3JX29160 PULLEY CONVEYING
302H702590 2H702590 BUSH SCREW
303LJ24230 3LJ24230 SPRING REGIST
303LJ02150 3LJ02150 LEVER RELEASE
303LJ24121 3LJ24121 SPRING CONVEYING
303LJ02240 3LJ02240 SPRING GND A
3HK10030 3HK10030 PULLEY EJECT
302LW07060 2LW07060 JOINT PF ROLLER
303LJ31060 3LJ31060 GEAR Z32S
303LJ24150 3LJ24150 SPRING EXIT
303LJ29060 3LJ29060 LEVER PRESSURE
7NXSG2481+++H01 NX052600 SENSOR OPT
303K502200 3K502200 ACTUATOR BASE
303M602070 3M602070 STOPPER ORIGINAL
3HK07240 3HK07240 FRICTION PLATE LF
303LJ94010 3LJ94010 PARTS DRIVER PWB ASSY SP
303LJ29040 3LJ29040 SPRING LOOP PRESSURE
303LJ44040 3LJ44040 CLUTCH PAPER FEED
303LJ24080 3LJ24080 ACTUATOR TIMING
303LJ24090 3LJ24090 SPRING TIMING
3HL10140 3HL10140 PULLEY LOOP
303LJ24190 3LJ24190 HOOK PF COVER
3H608150 3H608150 SHAFT C PULLEY
3HK07140 3HK07140 SPRING LF
303LJ31050 3LJ31050 GEAR Z28S
303LJ31090 3LJ31090 GEAR Z56S
303LJ02250 3LJ02250 SPRING GND B
303LJ94040 3LJ94040 PARTS ROLLER EXIT SP
3CY07080 3CY07080 BUSHING
5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
303LJ24101 3LJ24101 GUIDE SEPARATION
303LJ31080 3LJ31080 GEAR Z35S
303LJ94020 3LJ94020 PARTS ROLLER A CONVEYING SP
303LJ94030 3LJ94030 PARTS ROLLER B CONVEYING SP
303LJ31100 3LJ31100 GEAR T Z28S
303LJ94050 3LJ94050 PARTS GEAR Z46S ONEWAY SP
1702LX0UN0 072LX0UN MK-370/MAINTENANCE KIT (OPTION)
303HL22200 3HL22200 PLATE GND
3HK07080 3HK07080 COLLAR S SPRING
3HK07270 3HK07270 COLLAR PF

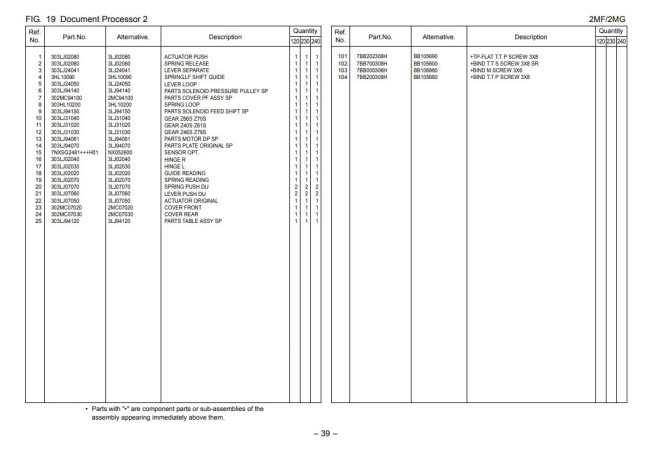

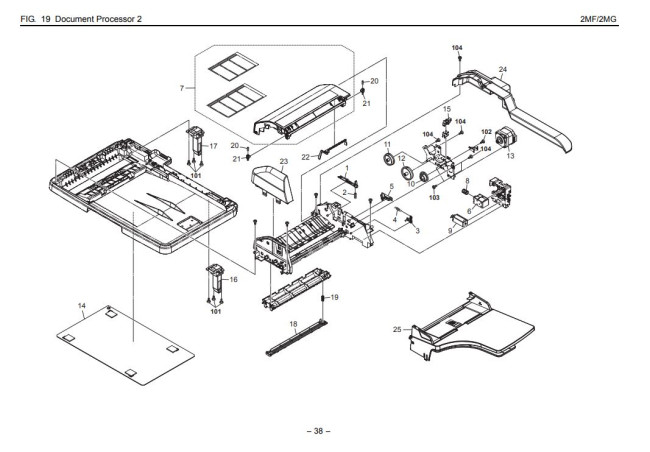

302MC07010 2MC07010 BASE DP
303LJ02080 3LJ02080 ACTUATOR PUSH
303LJ02060 3LJ02060 SPRING RELEASE
303LJ24041 3LJ24041 LEVER SEPARATE
3HL10090 3HL10090 SPRING,LF SHIFT GUIDE
303LJ24050 3LJ24050 LEVER LOOP
303LJ94140 3LJ94140 PARTS SOLENOID PRESSURE PULLEY SP
302MC94100 2MC94100 PARTS COVER PF ASSY SP
303HL10200 3HL10200 SPRING LOOP
303LJ94150 3LJ94150 PARTS SOLENOID FEED SHIFT SP
303LJ31040 3LJ31040 GEAR Z66S Z70S
303LJ31020 3LJ31020 GEAR Z40S Z61S
303LJ31030 3LJ31030 GEAR Z46S Z79S
303LJ94061 3LJ94061 PARTS MOTOR DP SP
303LJ94070 3LJ94070 PARTS PLATE ORIGINAL SP
7NXSG2481+++H01 NX052600 SENSOR OPT.
303LJ02040 3LJ02040 HINGE R
303LJ02030 3LJ02030 HINGE L
303LJ02020 3LJ02020 GUIDE READING
303LJ02070 3LJ02070 SPRING READING
303LJ07070 3LJ07070 SPRING PUSH DU
303LJ07060 3LJ07060 LEVER PUSH DU
303LJ07050 3LJ07050 ACTUATOR ORIGINAL
302MC07020 2MC07020 COVER FRONT
302MC07030 2MC07030 COVER REAR
303LJ94120 3LJ94120 PARTS TABLE ASSY SP

Совместимость:
Kyocera FS-3540MFP
Kyocera FS-3640MFP
Kyocera FS-3040MFP+
Kyocera FS-3140MFP+
